Jax 3D Trains

#101 Mainframe

#101 Mainframe

Digital Download

$20.00 USD

~~$0.00 USD~~ $20.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Structure: The mainframe serves as the core support structure of the locomotive, comprising two longitudinal beams running the entire length from front to back, with cross members forming a robust framework. This design supports the weight of the locomotive and manages operational stresses.
Design: It's engineered to provide a stable foundation for the cylinders, suspension, and other mechanical components. The mainframe includes strategic points where various parts of the locomotive connect, ensuring efficient operation and movement.
Aesthetic: The aesthetic of the mainframe emphasizes functionality over ornamentation, reflecting the industrial and practical nature of early 20th-century locomotive design.

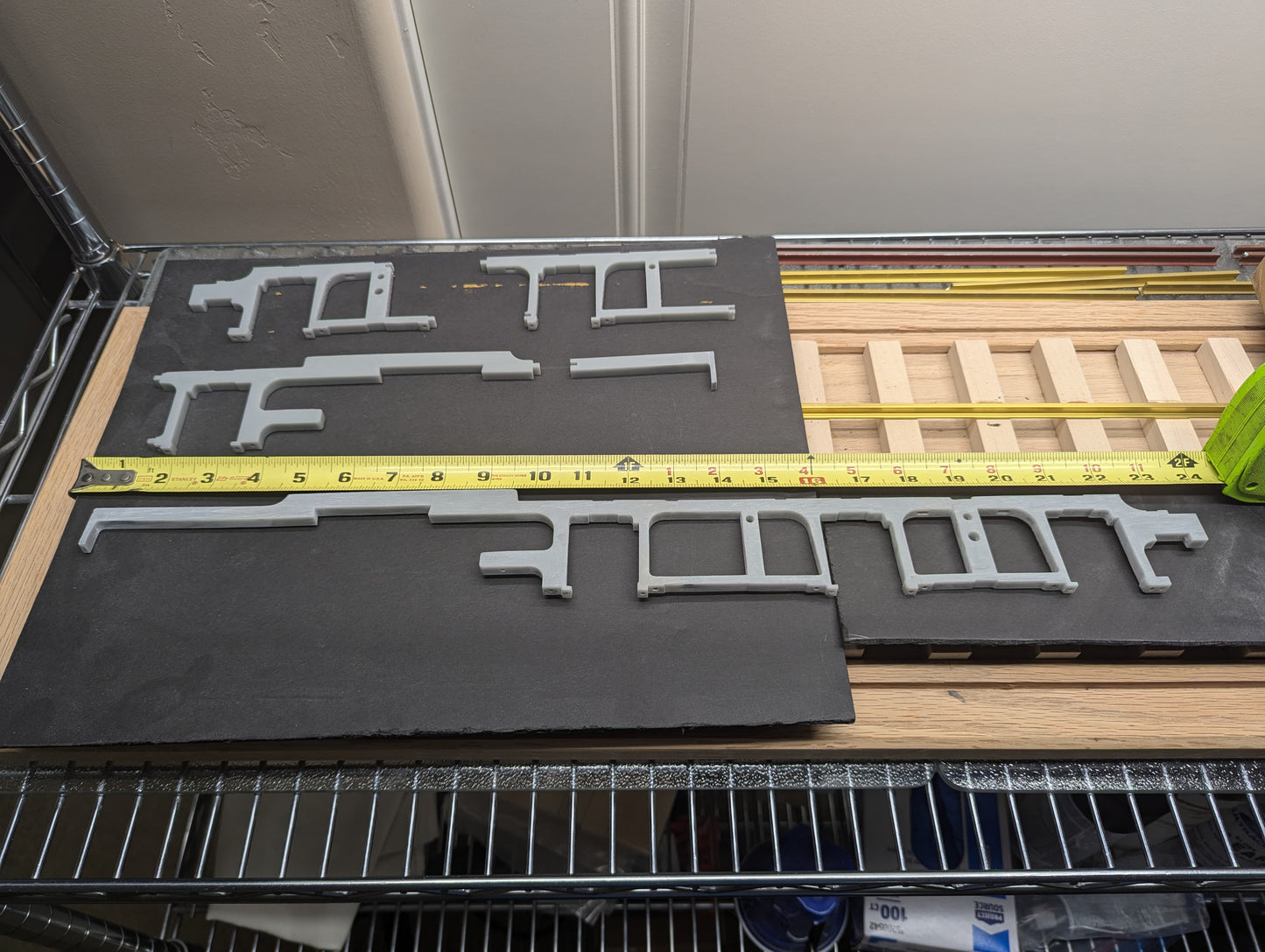

Detail: The mainframe shows where components like the cylinders, suspension, and valve gear would attach, providing a clear understanding of the locomotive's assembly and mechanics. Additionally, it includes three lower frame keepers specifically designed to hold the Journal Boxes in place, enhancing the model's realism and functionality.
Modularity for Printing: For ease of 3D printing, the mainframe model is thoughtfully divided into five sections. This segmentation allows for more manageable printing processes, ensuring high detail and accuracy while simplifying assembly post-print.
