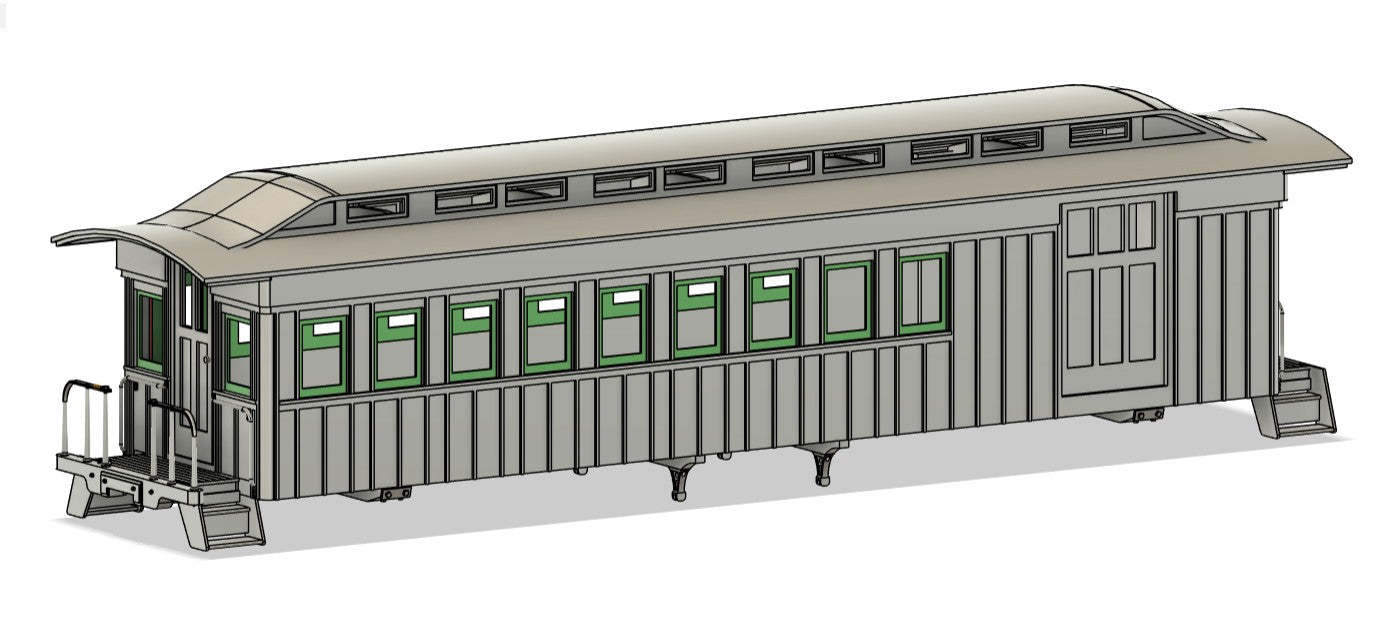

SJP.P38Cbb Carter Brothers 38ft B-B combine

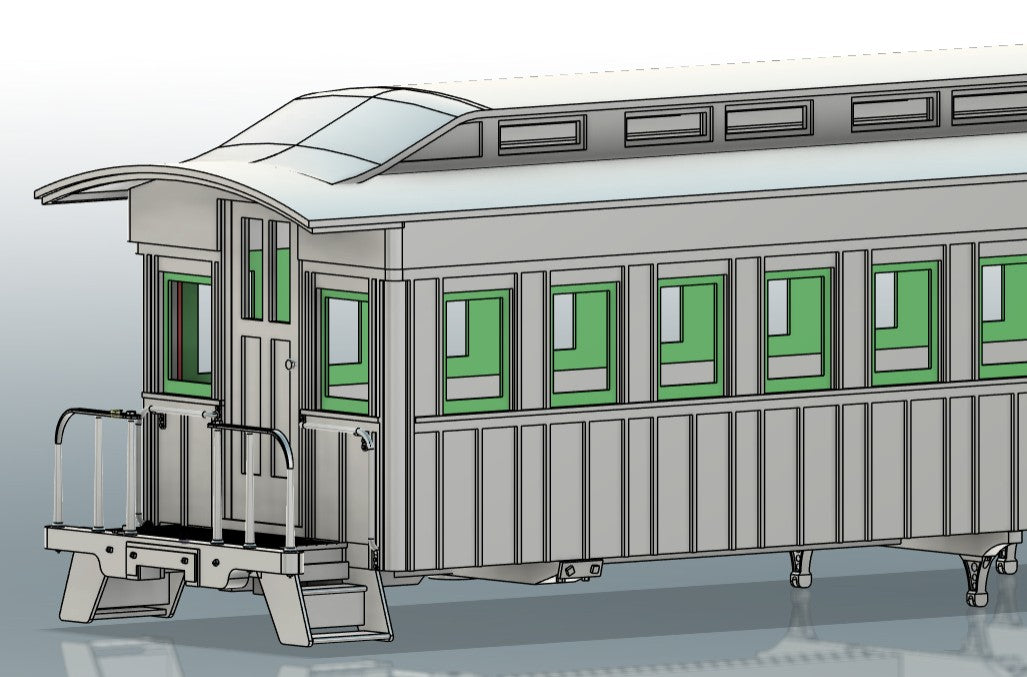

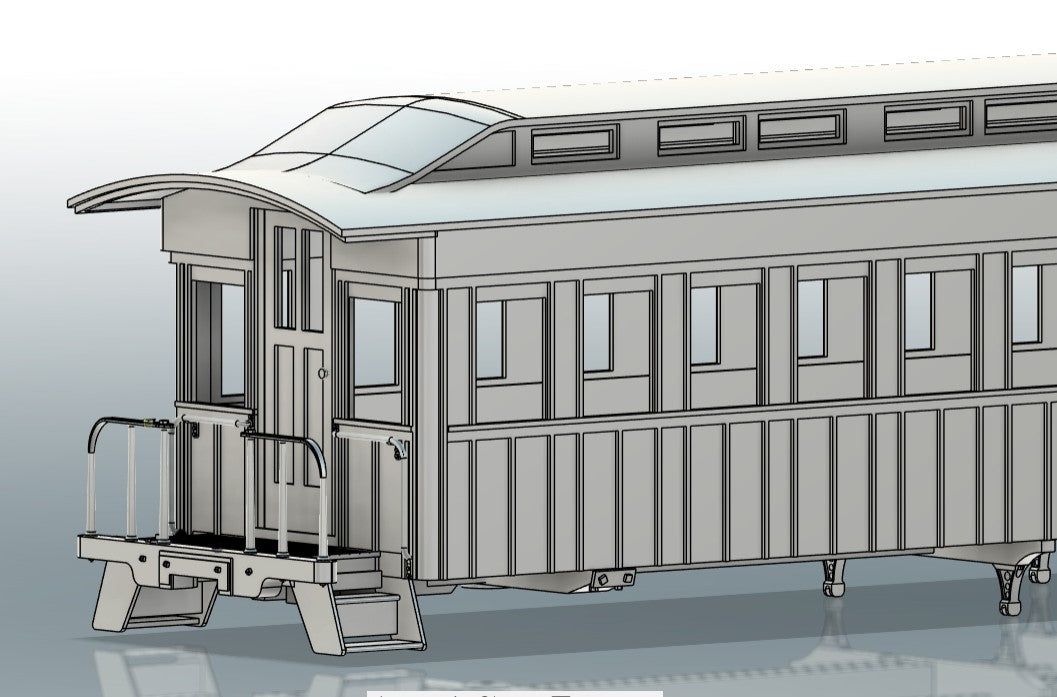

On30/0n3 38ft 1870s-1880s Carter Brothers Board and Batten style combine. It is available with the inner window frames printed with the shell or with separate laser-cut 0.02 thick inner window frames (show in in green). DXF files for the window frame inserts will be available for download, but you will need to find your own source for cutting them. For the window frames the combine uses two 5-window frames (SJP.BnBwindows-5.dxf) and four end window frames (SJP.BnBwindows-end.dxf)

NOTE; like all SJP models, the fit between all the parts is tight. It is easier to sand something to fit that try to add material to make up for a loose fit.

It uses Kadee On3 couplers (#803 or #807) and Wiseman 0n3/0n30 Carter Brothers passenger trucks (P/N CARTPASS) and needs 2-56 screws or equivalent to attach the body to the chassis.
