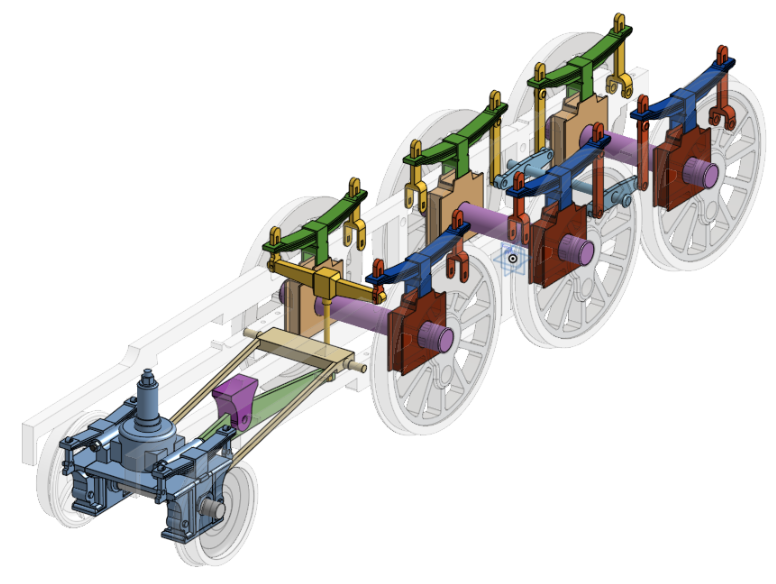

1908 2-6-0 Baldwin Suspension

Suspension system 1908 2-6-0 Baldwin Locomotive:

• Leaf Springs: The suspension employs leaf springs, which are modeled to have multiple layers of flat, curved strips. These springs run longitudinally under the locomotive, providing support and flexibility to handle the unevenness of narrow gauge tracks. Each leaf spring is designed to bend under load, absorbing shocks and distributing weight evenly across the frame.
• Spring Uprights: These are vertical components that connect the leaf springs to the mainframe. They are crucial for transferring the load from the springs to the locomotive's structure, ensuring that the weight is managed efficiently. The uprights are detailed to show how they would fit into the frame and connect to both the springs and the frame.
• Journal Boxes: The model includes journal boxes, which are housings for the bearings of the locomotive's axles. These are positioned where the axles meet the springs, secured by the three lower frame keepers on the mainframe. The journal boxes are designed to reduce friction and wear, with the model capturing their cylindrical shape and the way they interact with the suspension system.
• Front Bissell Truck: This component enhances the locomotive's maneuverability, especially on curves. The Bissell truck features:
• Pivot: A central pivot allows the truck to swivel under the locomotive, aligning with the track's curvature.
• Equalizers: These balance the load between the wheels, modeled to show how they would maintain equilibrium even when the locomotive is navigating uneven terrain.
• Suspension Hangers: These connect the springs to the truck frame, allowing for independent movement of each wheel set.

Additional Suspension Details:

• Hangers and Equalizers: Throughout the suspension, hangers support the springs, while equalizers distribute weight across multiple axles, ensuring even wear and stability. The model's design reflects how these parts would work in tandem to cope with the locomotive's dynamic loads.
• Lateral Movement: The design incorporates elements that allow for some lateral movement, simulating how the real locomotive would handle rail joints and curves, which is crucial for a narrow-gauge setup.
• Material and Aesthetic: Like the mainframe, the suspension components are crafted from durable resin, providing both strength and the ability to capture fine details. The aesthetic remains functional, with each part contributing to the overall look of an early 20th-century steam locomotive, complete with the patina of use and industrial design.

This detailed suspension system not only adds to the authenticity of the model but also educates on how steam locomotives managed stability and movement on the tracks of yesteryear.
