Mainline Railworks HO/HOn30 Sectional Diverging Draw
Mainline Railworks HO/HOn30 Sectional Diverging Draw
Sectional Track
Couldn't load pickup availability

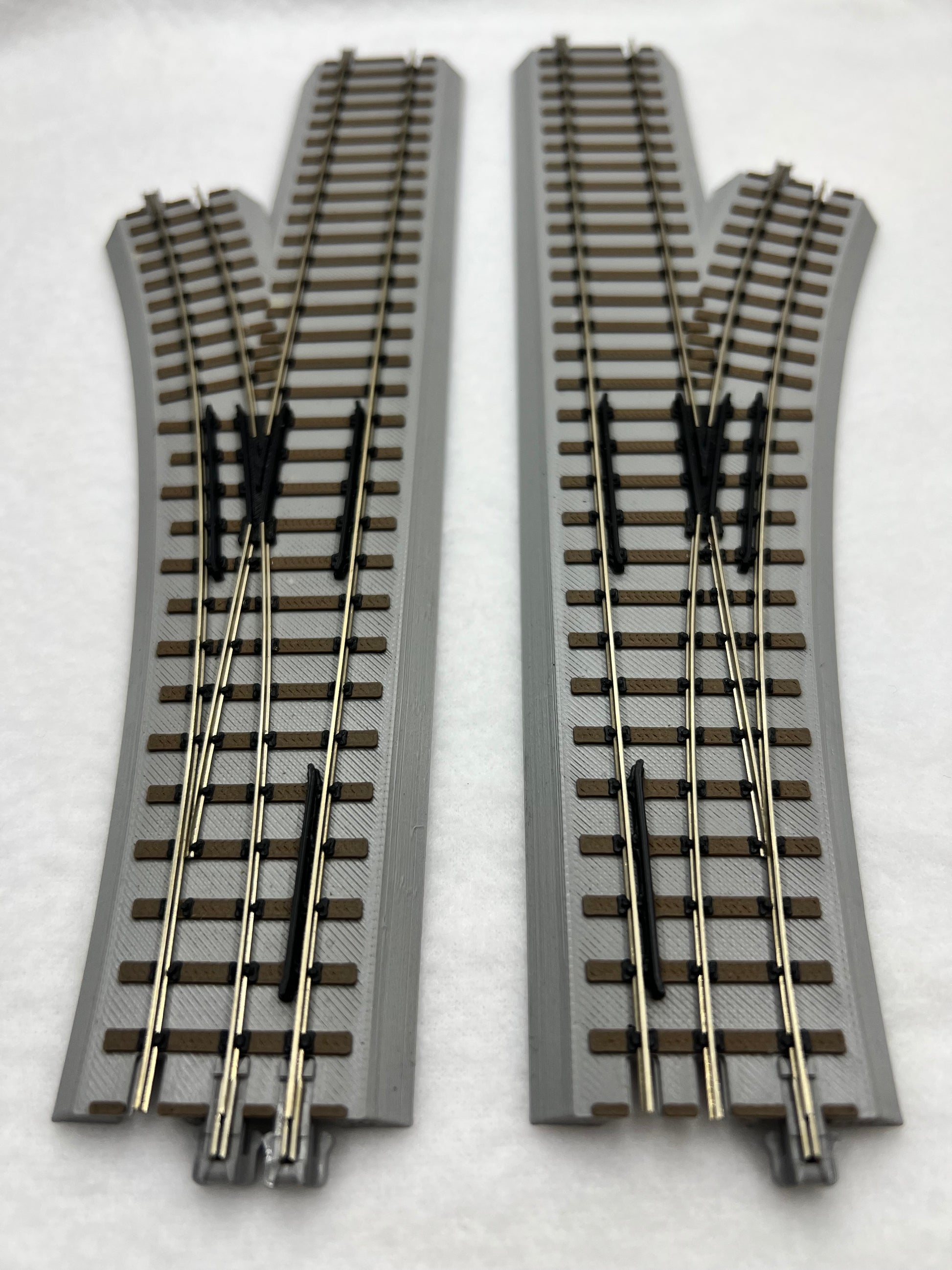

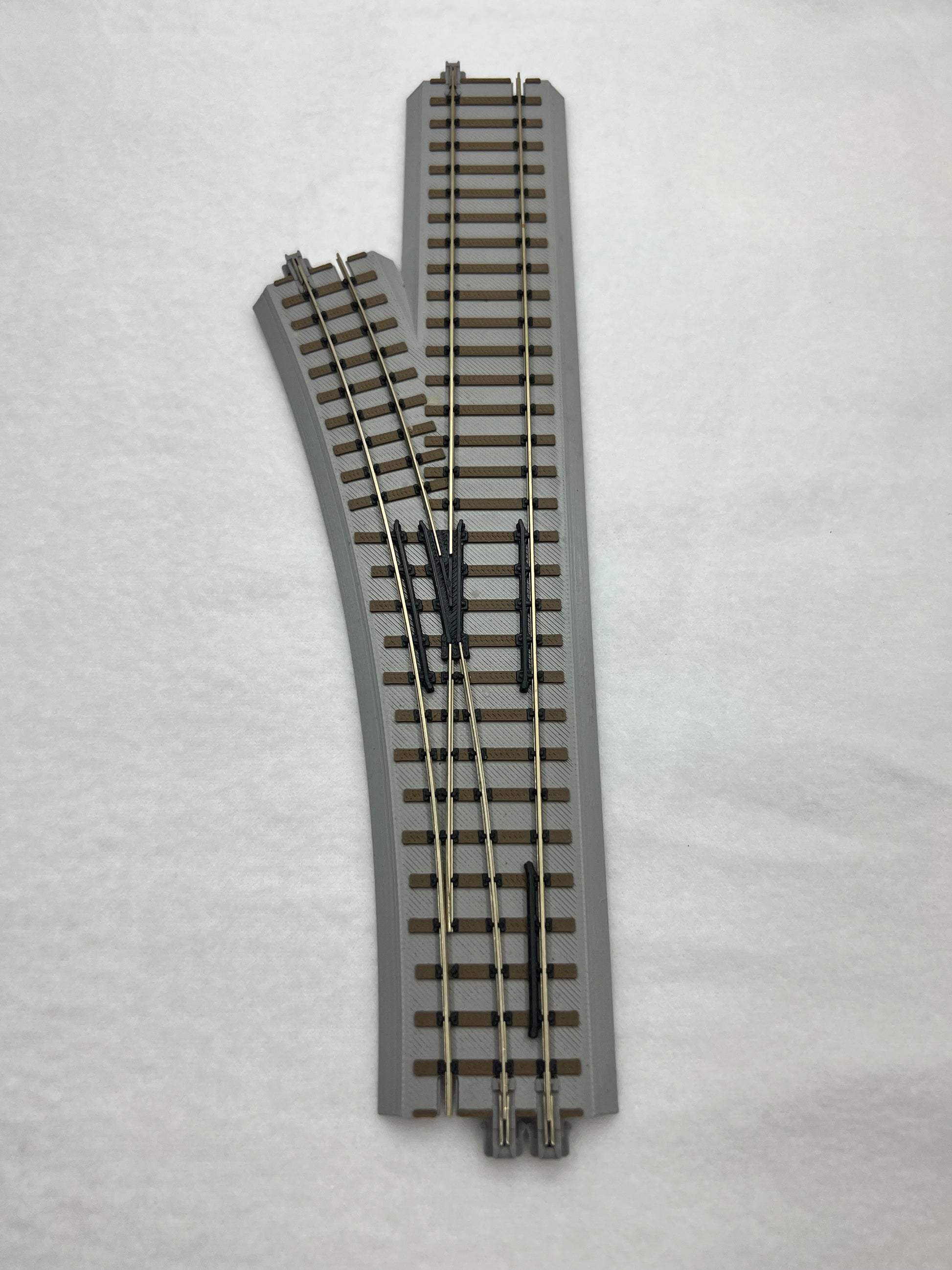

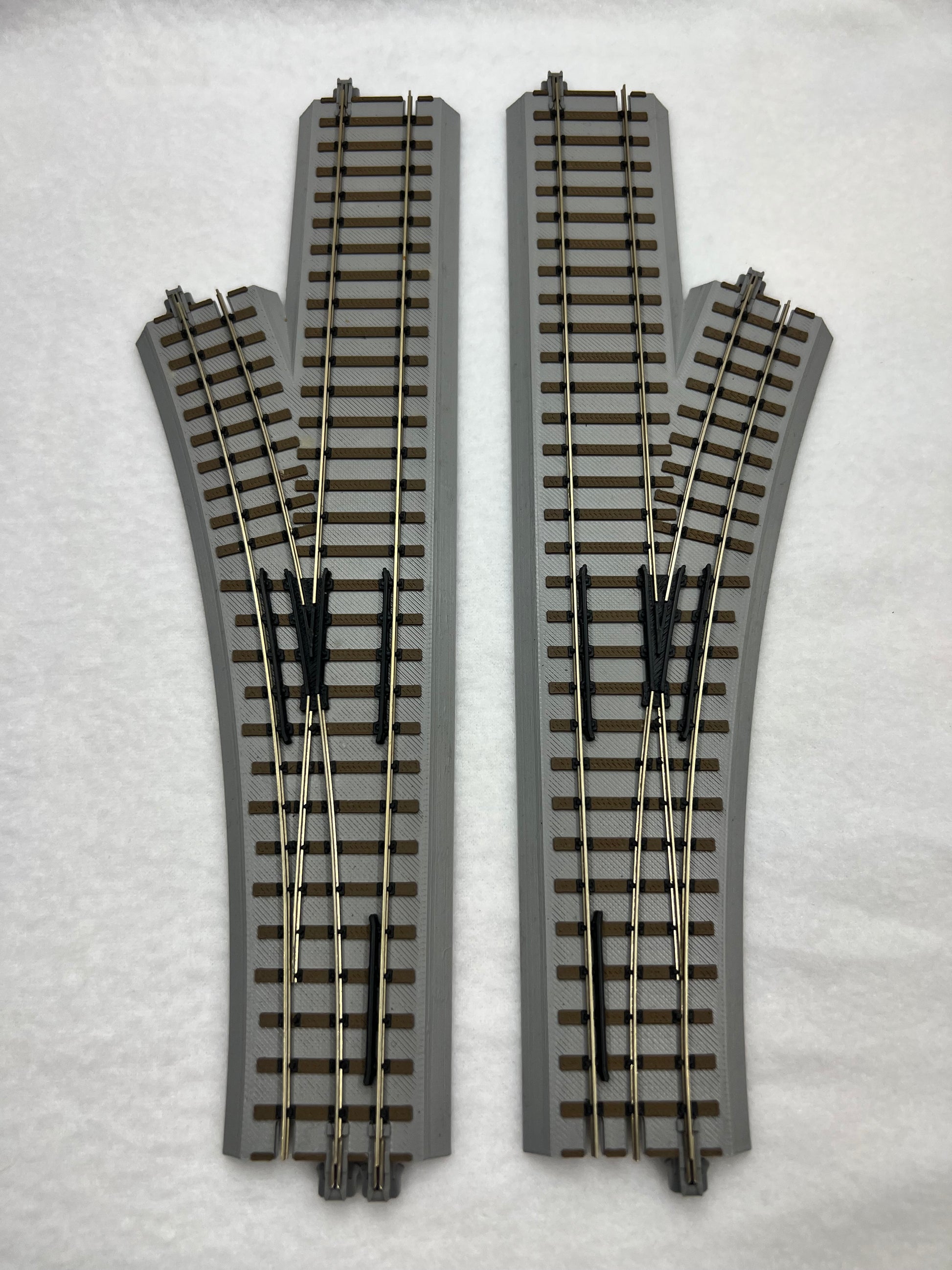

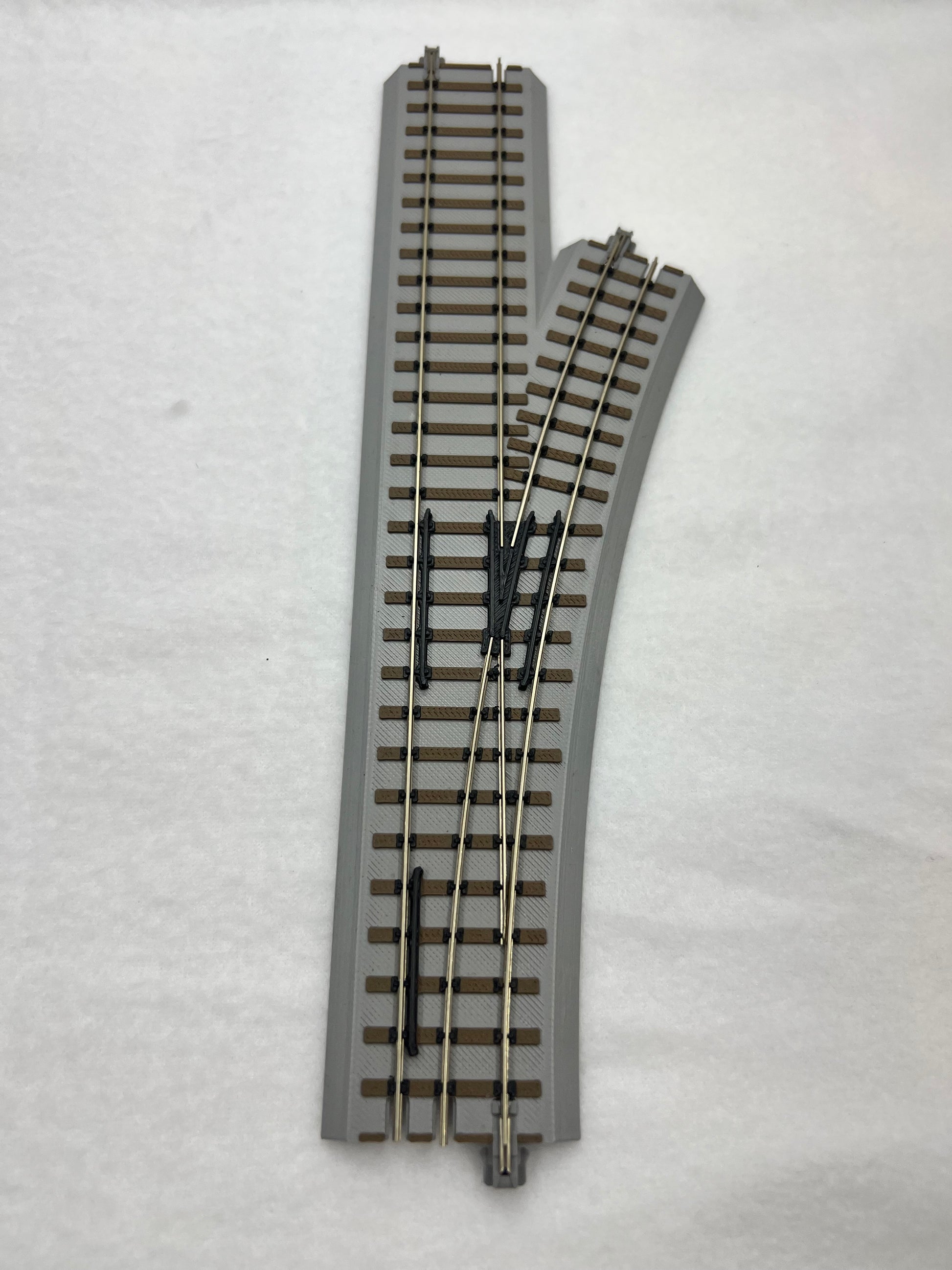

Mainline Railworks HO/HOn30 Dual Gauge Sectional Diverging Draw. Diverging draws are used to separate the narrow gauge from standard gauge and send each onto their own route.. These are compatible with Kato Unitrack (HO / HOn30 (N)). Track comes complete with Code 80 rails and joiners installed. Uses standard Unitrack joiners if insulated ones are desired or a power feeder is needed (Not included). Priced per section.
Using diverging draws and straight draws the narrow gauge can exit to either side of the standard gauge. Have the NG on the left, but want it to exit on the right? use a left to right draw just before the diverging draw. Even with the dual gauge, most sections can be flipped end for end to put the narrow gauge on the correct side without issue. Also, one half joiner can be removed allowing the track section to connect directly with either Narrow gauge, or standard gauge sections.
Angle:
A: 22.5 (16 per full circle)
B: 11.25 (32 per full circle)
C: 45 (8 per full circle)
Need a different option? Feel free to contact us!
Share
Made-to-Order Manufacturing
At 3DPT, every model is manufactured to order rather than pulled from warehouse inventory. This approach allows us to offer an extensive catalog while ensuring each piece is produced with the care and attention it deserves.
Most orders ship within 7-14 business days. However, larger models, complex projects, and high-volume orders may require 4-6 weeks or longer due to extended print times and production requirements.
While extended lead times are uncommon, they may occasionally occur during periods of high demand or due to circumstances outside our control. We appreciate your understanding as we continue our mission of preserving transportation history in miniature through high-quality, made-to-order models.
