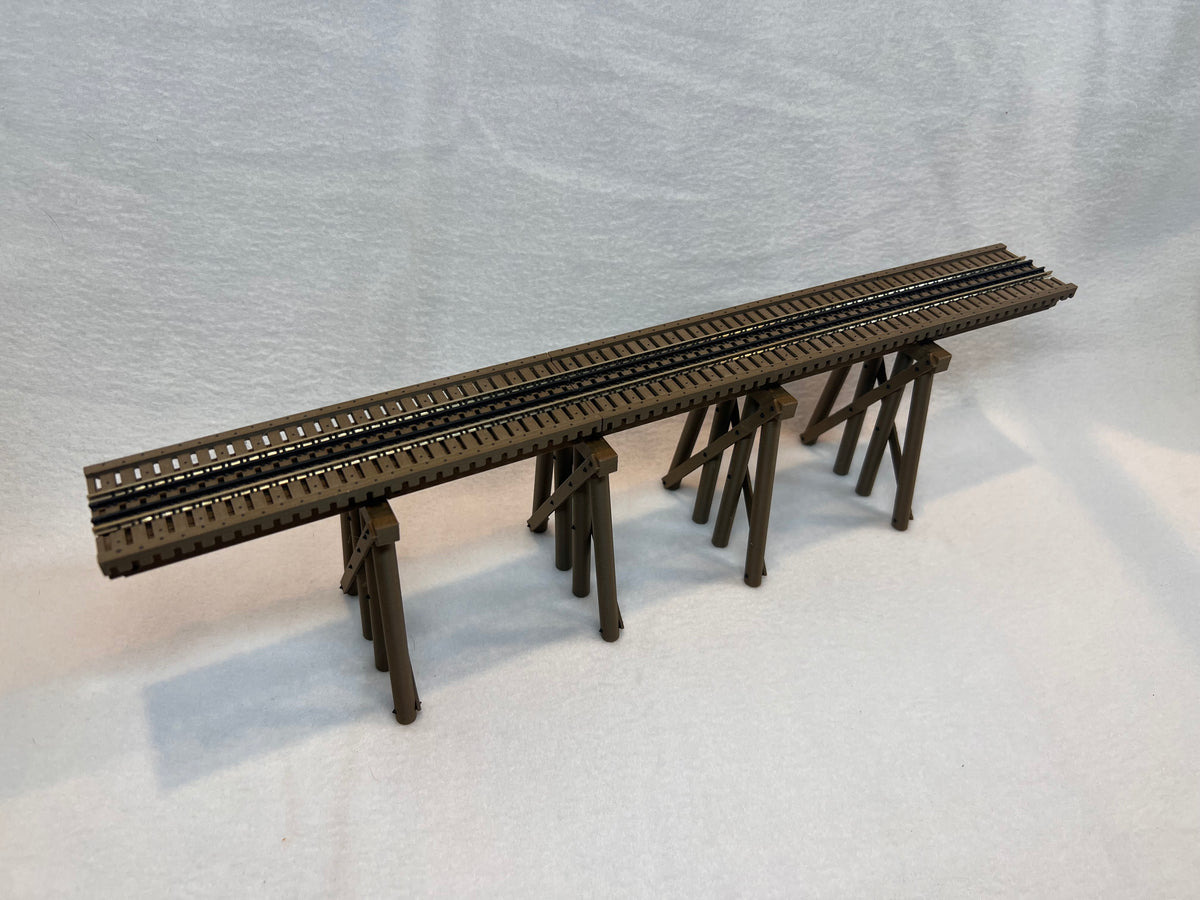

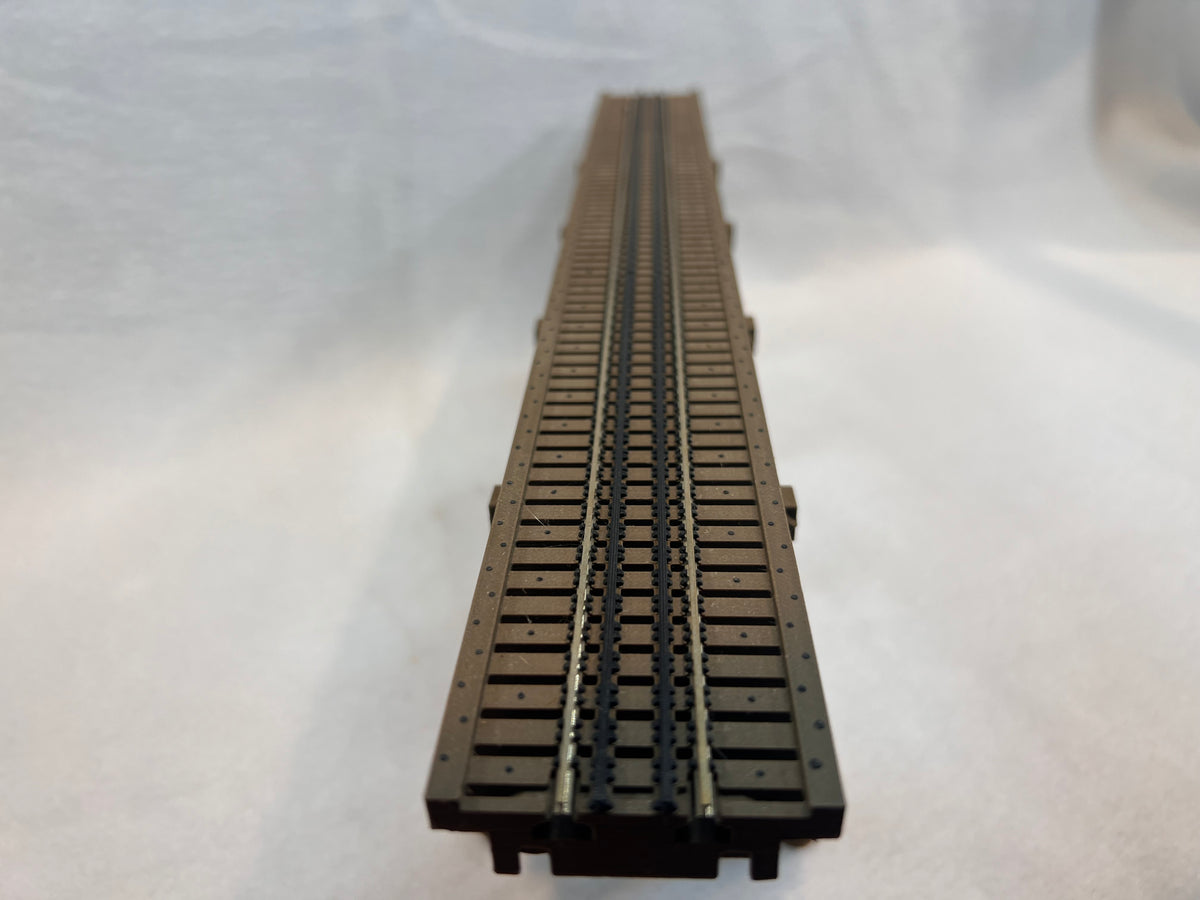

Bring your HOn3 railroad across streams, valleys, and rugged terrain with the Mainline Railworks Straight Trestle Deck. Designed for the Mainline Railworks HO-scale trestle system, each deck section comes with Code 80 rail installed and two track connectors, allowing it to connect directly to Mainline Railworks HOn3 sectional track.

Inspired by traditional railroad trestle construction and D&RGW standard plans, these modular deck sections are available in two lengths. Combine compatible sections to create a longer elevated route, extend an existing trestle, or build a standalone crossing.

Choose Your Deck Length

Select the length that best fits your track plan:

• 4.5-inch section: Ideal for compact crossings, shorter spans, and adjusting the overall length of your trestle. Three bents are recommended to fully support a standalone section.

• 9-inch section: Provides a longer straight section for crossing larger gaps and building extended trestles. Six bents are recommended to fully support a standalone section.

Both lengths feature installed Code 80 rail and two track connectors for direct connection to Mainline Railworks HOn3 sectional track.

Modular Support Planning

Decks and bents are sold separately, giving you the flexibility to choose the bent style and height that best suit your bridge.

Each section's recommended bent count provides full support for a standalone assembly, including support at the ends and beneath joints between adjoining sections. When extending an existing trestle, adjoining sections share support at their joint, reducing the number of additional bents needed. For a single span between bridge abutments, two bents may be omitted when suitable abutments are used.

Features

• Designed for HOn3 track arrangements in HO scale.

• Available in 4.5-inch and 9-inch lengths.

• Code 80 rail installed on each deck.

• Two track connectors included with each deck.

• Directly connects to Mainline Railworks HOn3 sectional track.

• Compatible with the Mainline Railworks HO-scale trestle system.

• Modular design for custom bridges and elevated track sections.

• Designed for use with separately available bent supports.

Included

• One Mainline Railworks HOn3 straight trestle deck in the selected length.

• Code 80 rail installed.

• Two track connectors.

Bent supports, additional track, and other accessories are sold separately unless specifically listed as included in a kit or pack.

Compatibility

Designed for the Mainline Railworks HO-scale trestle system and HOn3 track arrangements. The installed rail and included connectors allow direct connection to Mainline Railworks HOn3 sectional track.

Mainline Railworks O-scale trestle components use a different system and are not interchangeable with HO-scale components.

This 3d printed kit includes the following parts:

4.5":

• 1x MP-H3BT4S42p2 (PLA, 27.1 × 8.5 × 114.3 mm)
• 1x MP-H3BT4S42p1 (PLA Wood, 28.0 × 9.2 × 114.3 mm)
• 9x Code 80 rail per inch (Atlas Rail)
• 2x Full Brown Single (Kato Unitrack Connector)

9":

• 1x MP-H3BT4S9p1 (PLA Wood, 28.0 × 9.2 × 228.6 mm)
• 1x MP-H3BT4S9p2 (PLA, 27.1 × 8.5 × 228.6 mm)
• 18x Code 80 rail per inch (Atlas Rail)
• 2x Full Brown Single (Kato Unitrack Connector)
