SJP.Tn07 Southern Pacific narrow gauge 4-6-0 #18 tender

This is a tender for the SPNG #18 conversion kit (SJP.St18). It is designed to use the trucks and electronics from a donor Bachmann On30 4-6-0. There is an option for a frame that uses On3 style trucks, but you would have to come up with power pickups.

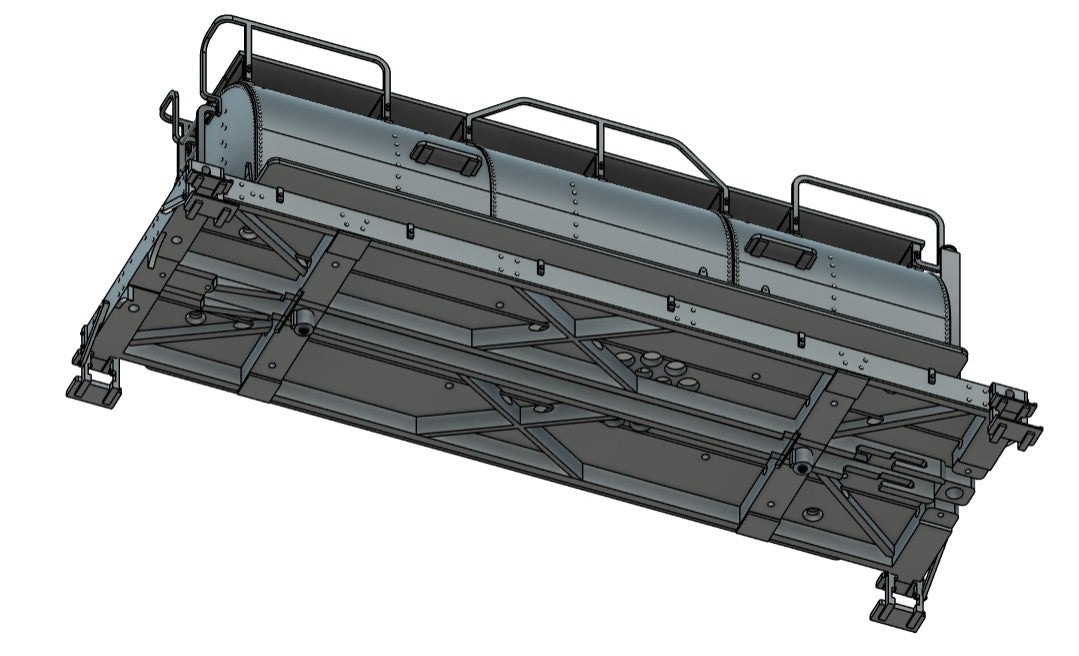

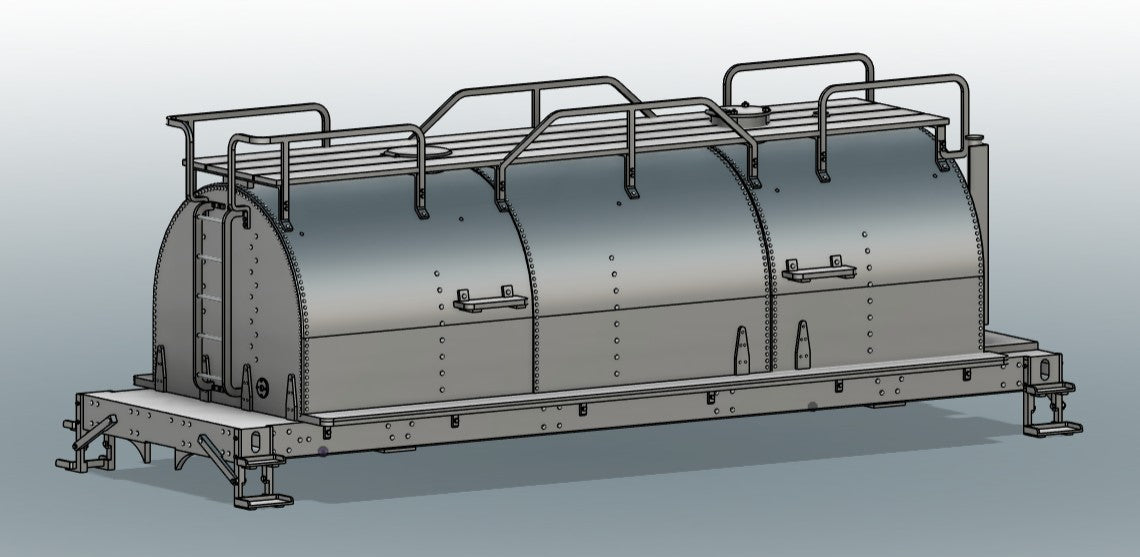

It includes the frame, shell and walkway with handrails. The frame has provisions for two 1/16" tungsten rods to stiffen and add weight to the frame.

This 3d printed kit includes the following parts:

generic trucks:

• 1x SJP-Tn07p2 SPNG 18 SC walkway (ABS, 32.5 × 143.6 × 16.7 mm)
• 1x SJP.Tn07p3c SPNG SC frame-generic trucks (ABS, 60.2 × 168.4 × 22.9 mm)
• 1x SJP.Tn07p1 SPNG 18 SC shell (ABS, 61.3 × 149.0 × 40.7 mm)

Bachmann trucks:

• 1x SJP-Tn07p2 SPNG 18 SC walkway (ABS, 32.5 × 143.6 × 16.7 mm)
• 1x SJP.Tn07p3b SPNG SC frame-Bachmann trucks (ABS, 60.2 × 168.4 × 22.9 mm)
• 1x SJP.Tn07p1 SPNG 18 SC shell (ABS, 61.3 × 149.0 × 40.7 mm)
